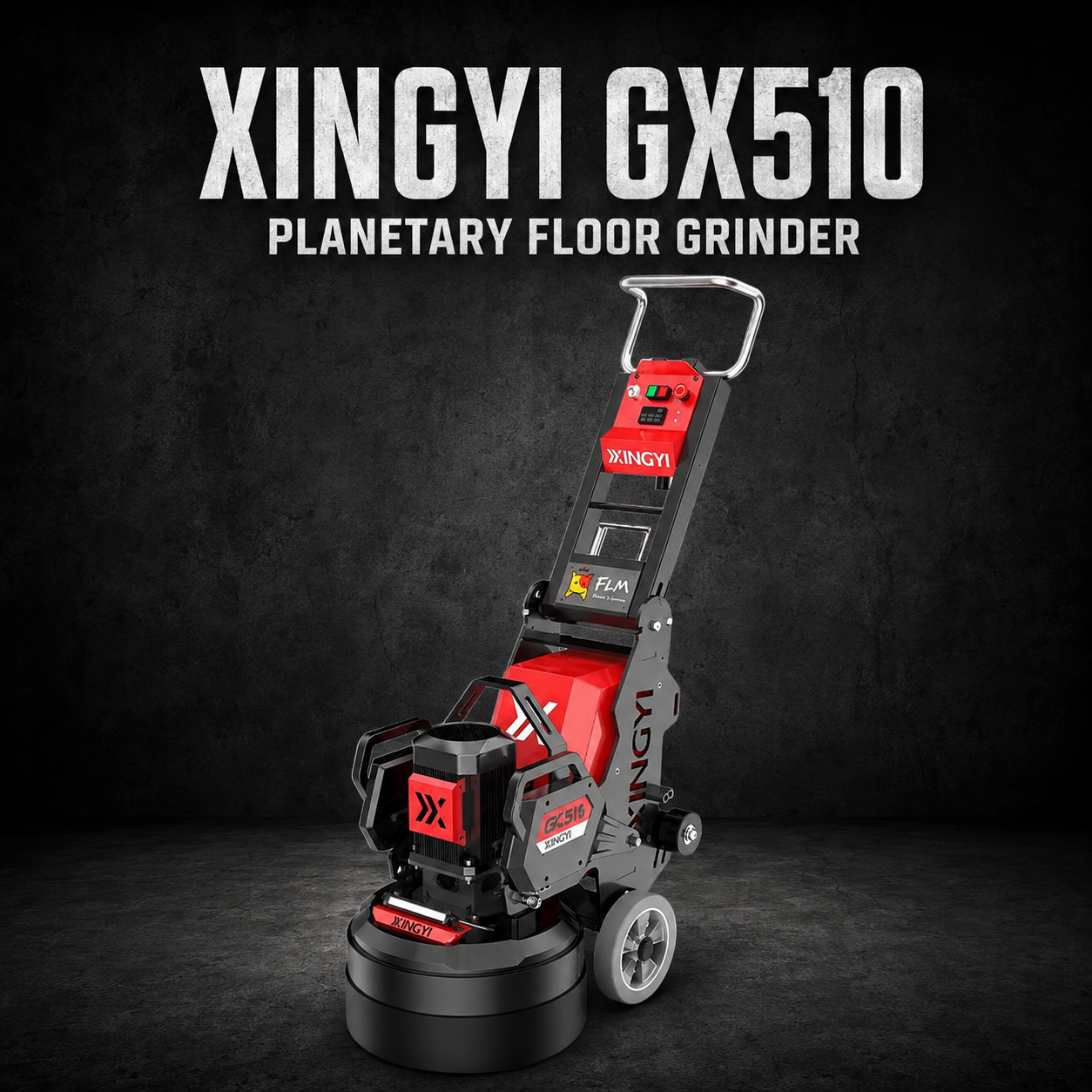

XINGYI GX510 Planetary Concrete Floor Grinder-4kW 240V

The XINGYI GX510 is a heavy-duty planetary concrete floor grinder engineered to deliver professional grinding performance from a 240V single-phase, 15A power supply.

Its high-torque 4kW permanent-magnet motor and heavy-duty planetary gearbox drive three 220mm grinding heads across a 490mm working width. With variable speed from 350 to 1500rpm and up to 147kg of grinding pressure, the GX510 is suitable for aggressive coating removal, concrete surface preparation, levelling, grinding and polishing.

A super-capacitor soft-start system reduces the initial power demand for smoother starting and more reliable operation on site. Its compact, separable construction assists with transport and upper-floor access, while non-marking wheels, LED work lights and a water-ready design make it a versatile choice for professional flooring contractors.

KEY FEATURES

• 490mm planetary grinding width

• Three 220mm grinding heads

• Heavy-duty gear-driven planetary system

• 4kW permanent-magnet motor

• 240V single-phase, 15A operation

• Super-capacitor soft-start system

• Variable grinding speed from 350–1500rpm

• Up to 147kg grinding pressure

• Suitable for coating removal, surface preparation and polishing

• Compact and separable for easier transport

• Integrated lifting point

• LED work lights

• Water-ready design

• Non-marking transport wheels

• Optional additional weights available

SPECIFICATIONS

• Model: GX510

• Motor power: 4kW / 5.5HP

• Power supply: 240V single phase

• Rated current: 15A

• Frequency: 50Hz

• Grinding width: 490mm

• Grinding heads: Three

• Grinding-disc diameter: 220mm each

• Grinding speed: 350–1500rpm

• Maximum grinding pressure: 147kg

• Drive system: Heavy-duty planetary gearbox

• Machine weight: 256kg

• Dimensions: 1096 × 500 × 1597mm

• Optional additional weight: Two 5.5kg weights
