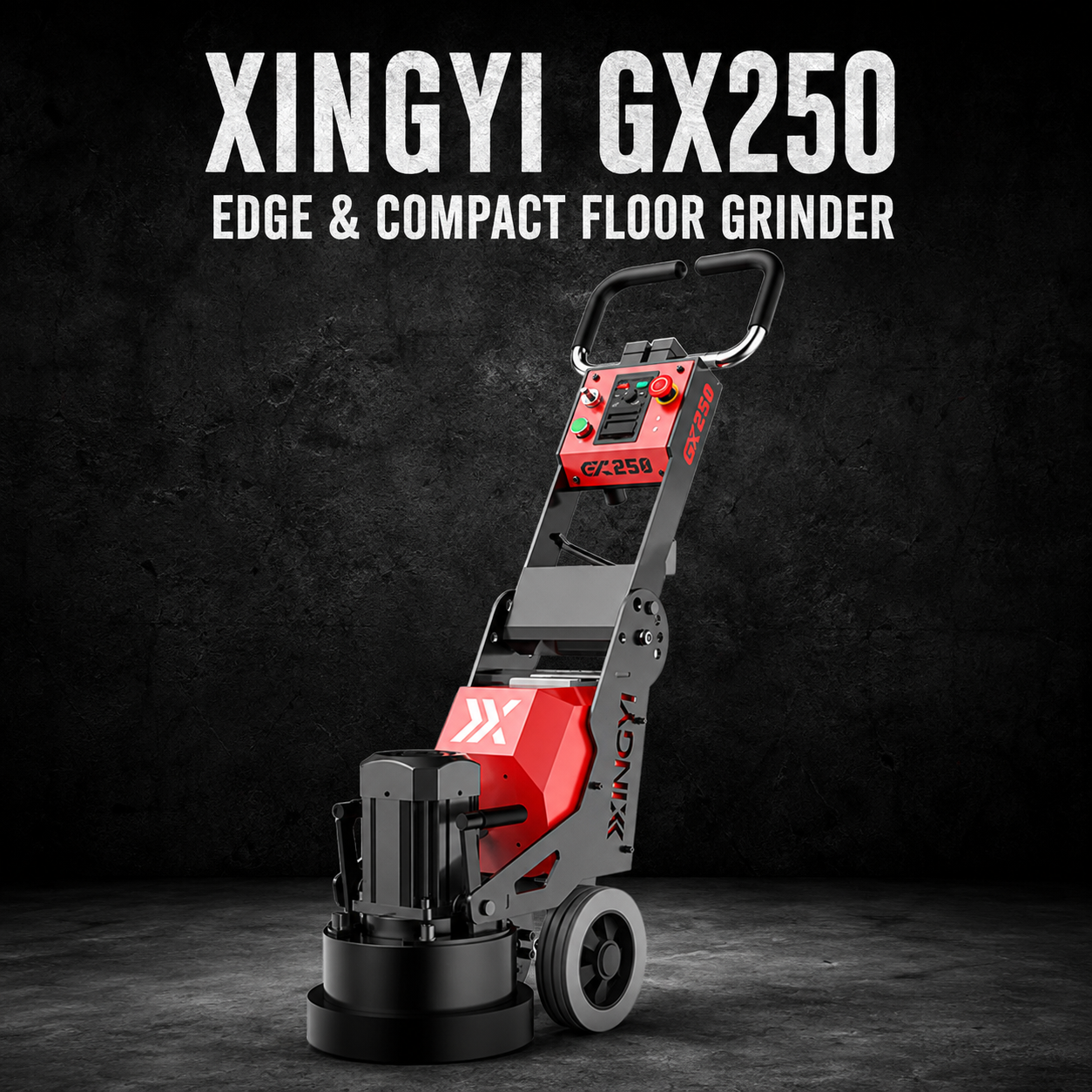

XINGYI GX250 250mm Edge & Compact Floor Grinder – 1.1kW

The XINGYI GX250 is a compact, versatile floor grinder designed for edges, corners, columns, confined areas and smaller surface-preparation projects where larger machines cannot operate effectively.

Powered by a high-efficiency 1.1kW permanent-magnet motor, the GX250 drives a single 250mm grinding head with variable speed from 350 to 1500rpm. This allows the machine to handle everything from aggressive coating removal and concrete preparation through to fine grinding and polishing with suitable tooling.

Its soft-start capacitor system helps reduce starting demand and provides stable operation from a single-phase power supply. The modular grinding head can be detached for easier lifting and transport, making the GX250 a practical companion machine for professional flooring contractors.

Compatible tooling includes diamond grinding discs, resin polishing pads, cup wheels and bush hammers.

KEY FEATURES

• Compact 250mm grinding width

• Designed for edges, corners and confined areas

• Side-grinding capability for working close to walls

• 1.1kW permanent-magnet motor

• Single-phase operation

• Variable speed from 350–1500rpm

• Integrated variable-frequency drive

• Capacitor-assisted soft start

• Low operating-current requirement

• Single 250mm grinding head

• Detachable head for easier transport

• Suitable for single-operator handling

• Compatible with multiple grinding and polishing tools

• Suitable for concrete, stone and other appropriate surfaces

SPECIFICATIONS

• Model: GX250

• Motor power: 1.1kW / 1.5HP

• Voltage: 220–240V single phase

• Rated current: Approximately 5A at 220V

• Frequency: 50/60Hz

• Grinding width: 250mm / 10"

• Grinding disc: One 250mm disc

• Variable speed: 350–1500rpm

• Machine weight: Approximately 60kg

• Dimensions: 833 × 355 × 1161mm

• Operation: Walk-behind compact edge grinder

APPLICATIONS

• Concrete edge grinding

• Grinding beside walls and columns

• Corner and confined-area preparation

• Epoxy and coating removal

• Concrete profiling and levelling

• Small-area floor preparation

• Stone grinding and polishing

• Detail work following larger floor grinders
